Price: $103.94
(as of Jan 04, 2025 15:37:55 UTC – Details)

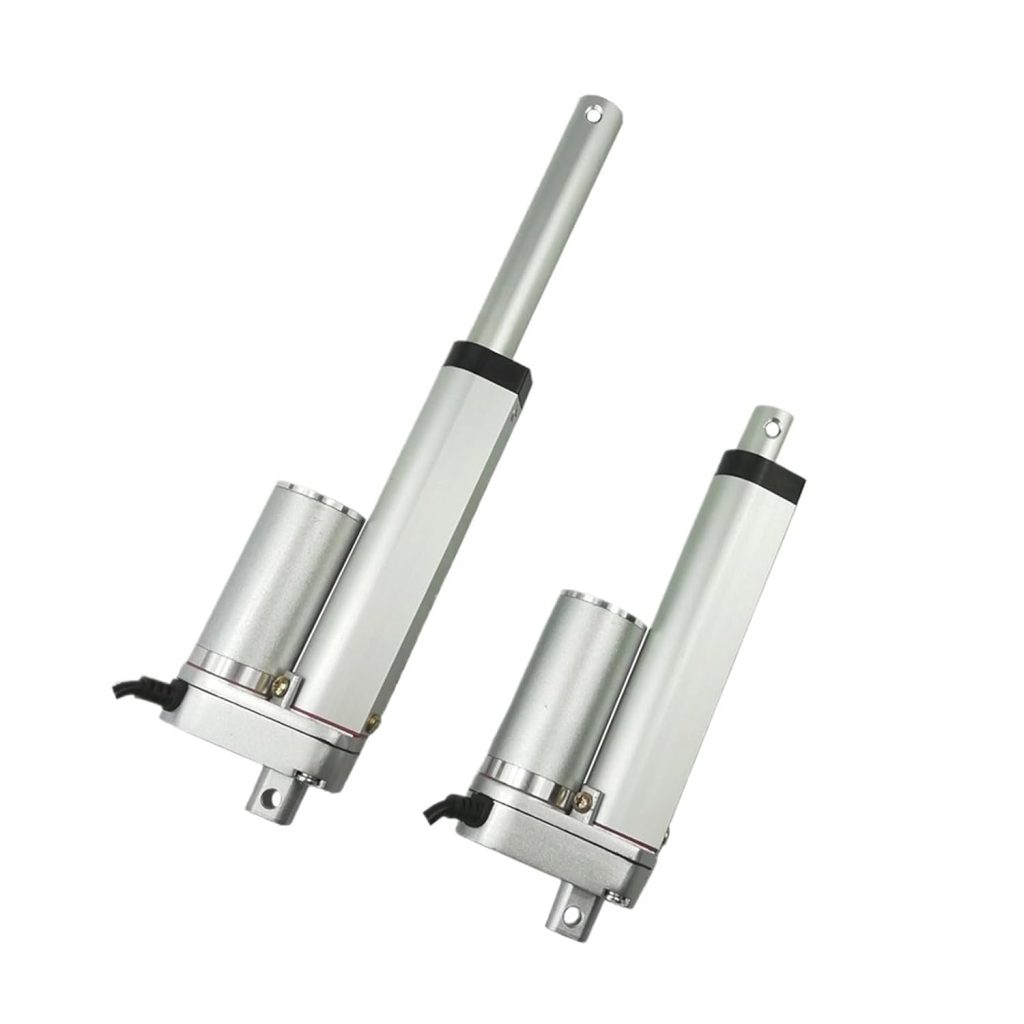

12V 24V 20/30/50/100/150MM customized stroke 100mm/s speed 1600N 160KG 352LBS linear actuator
Linear actuator spec:
2Input 12V 24V DC
3 Max Load 1600N=160KG=352LBS
4 Max Speed 100mm per second
5Limited switch With
6Duty cycle 25%
7Inner tube material Aluminum alloy
8Stroke length Max 1000mm
9 Lmin and Lmax Normal Lmin=Stroke
10 Color Silver or Black
11Operation temperature -26 ~ +65 degree
Normal size
1 Lmin=105mm+Stroke
For example.If Sroke is 50mm,the normal Lmin is 105+50=155mm.
Lmin means the length when linear actuator 100% fully closed, meanwhile,it will touch the tail limited switch and stop automatically.
2 Stroke means the movement length of linear actuator.
3 Lmax=Lmin+Stroke=105+2*Stroke
For example. IfSroke is 50mm,the normal Lmin is 105+2*50=205mm.
Lmax means the length when linear actuator 100% fully open, meanwhile,it will touch the head limited switch and stop automatically.
Stroke 20MM Lmin=105+20=125MM,Lmax=125+20=145MM
Stroke 30MM Lmin=105+30=135MM,Lmax=135+30=165MM
Stroke 50MM Lmin=105+50=155MM,Lmax=155+50=205MM
Stroke 100MM Lmin=105+100=205MM,Lmax=205+100=305MM
Stroke 150MM Lmin=105+150=255MM,Lmax=255+150=405MM
Package Dimensions : 1.18 x 0.79 x 0.39 inches; 7.05 ounces
Item model number : LUISAS
Department : Unisex Adult
Date First Available : December 13, 2024
Manufacturer : LUISAS
ASIN : B0DQCH973T
Country of Origin : China
High-Performance Efficiency：Our Linear Actuator Motor offers outstanding performance with a precise and smooth operation, ensuring consistent and reliable motion control. It’s designed for applications requiring high accuracy and repeatability, making it perfect for industrial automation, robotics, and other engineering projects.
Robust and Durable Construction：Built with high-quality materials, this motor is designed to withstand harsh environments and heavy-duty usage. Its robust construction ensures long-term durability, reducing the need for frequent replacements and maintenance.
Versatile Applications：This actuator motor is highly versatile, suitable for a wide range of applications including automotive, medical devices, home automation systems, and more. Its adaptability makes it an essential component for various industries looking to enhance their technological capabilities.
Easy Installation and Integration：Featuring a user-friendly design, the Linear Actuator Motor is easy to install and integrate into existing systems. Its plug-and-play capability saves time and effort during setup, allowing for quick and efficient deployment in any project.
Energy-Efficient Operation：Engineered to minimize energy consumption, this motor provides an eco-friendly solution without compromising on power or performance. Its energy-efficient design not only lowers operational costs but also supports sustainable practices in your projects.
